Industrial Ammonia Nitrogen Sensor Can Be Equipped With A Reference Electrode, PH Electrode, NH4+ Electrode, ORP Or K+ (choose One Of The Two), And The Electrode Is Automatically Temperature-compe
1.Introduction to the New KNF-107A+ Ammonia Nitrogen Sensor

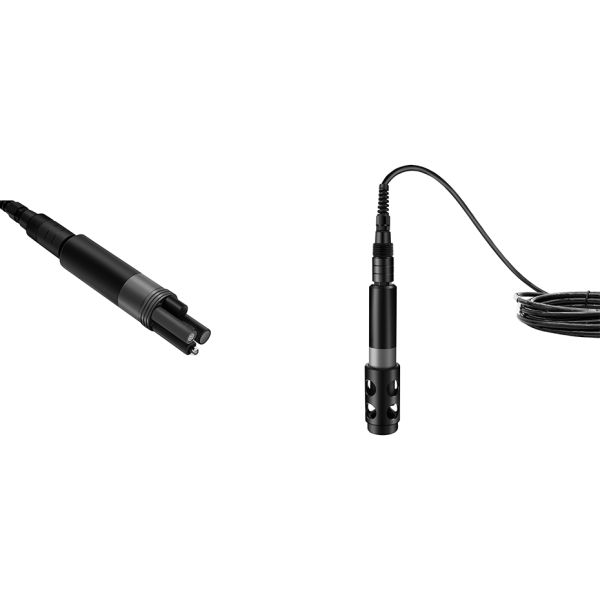

KNF-107A+ Ammonia Nitrogen Sensor Up to four electrochemical electrodes can be installed, namely a reference electrode, a pH measurement electrode, an NH4+ electrode, and an ORP or K+ (choose one) electrode. All electrodes are supported for on-site replacement by users. They can automatically compensate for NH4+, pH and temperature, and calculate the ammonia nitrogen (NH4-N) value.
2.Advantages and Features of the KNF-107A+ New Ammonia Nitrogen Sensor
1. The samples do not require pretreatment and are suitable for continuous online monitoring
2. The NH4+ ion electrode and the polyester liquid contact reference electrode (unconventional porous liquid contact) have a longer service life and less drift.
3. RS485 output, supporting Modbus RTU protocol.
4. Built-in isolator, with better anti-interference ability.
5. Support water leakage alarm.
6. Waterproof rating IP68
Note: Ion electrodes are only suitable for freshwater applications and are not applicable to seawater or Marine aquaculture.
3. Technical indicators
| measuring principle | PVC membrane ion selective electrode, glass bulb pH, ORP platinum, KCL reference | measuring range | Ammonia nitrogen: 0.5-1000ppm, resolution: 0.01ppm PH: 0-14 pH, resolution: 0.01ph ORP: -999~+999mV, resolution: 1mV (optional) Potassiumion: 0.5-1000ppm,resolution: 0.01ppm (optional) |
| accuracy | Ammonia nitrogen: 5% FS pH: ± 0.2pH ORP: ± 20mV Potassium ion: 5% FS (in freshwater, conductivity<1500uS/cm) | detection limit | Ammonia nitrogen: 0.05ppm Potassium ion: 0.05ppm |
| Flow rate requirements | <3m/s | response time | Max 45s T90 |
| work environment | 5~45℃ | storage temperature | -10~50℃ |
| Waterproof grade | IP68, 10m Max | data output | RS485, Modbus RTU |
| power | DC 5V ±5%, 0.5W | material quality | Body POM and titanium alloy, electrode POM and PVC |
| size | 186mm long, 35.5mm diameter (protective cover can be installed) | Length | Standard configuration of 5 meters, customizable |
4. Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)
All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.
▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
Wechat Official Account/Mini Program
